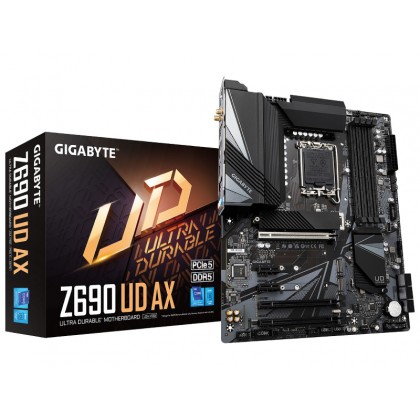

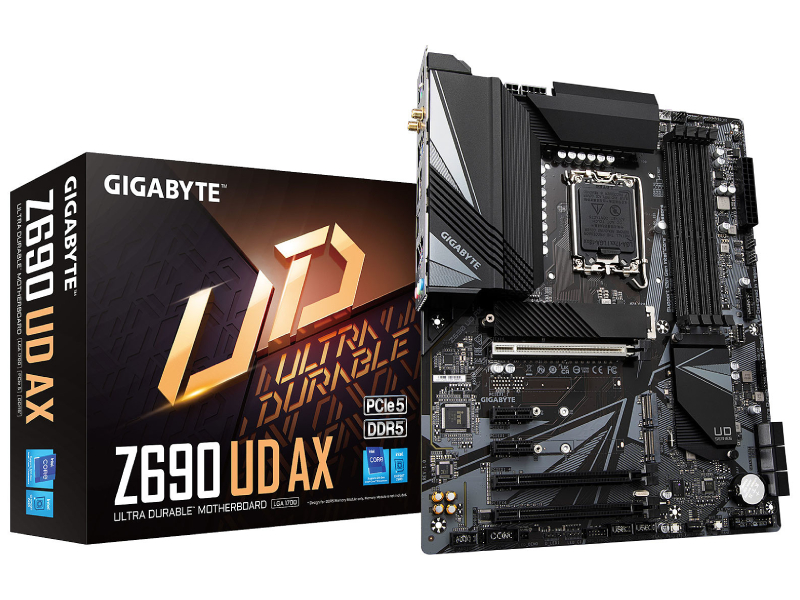

MB S1700 Gigabyte Z690 UD DDR4 1.0 ATX https://m9.by
  • MB S1700 Gigabyte Z690 UD DDR4 1.0 ATX
Atenţie! Înainte de a cumpăra, verificați caracteristicile și configurația mărfii cu vânzătorul. Aspectul mărfurilor și / sau ambalajelor poate fi modificat de producător și diferă de cele afișate pe site-ul web Cosmo Technology ©
MB S1700 Gigabyte Z690 UD DDR4 1.0 ATX
// CPU
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
Chipset
- Intel® Z690
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Audio
Realtek® Audio codec
LAN
Realtek® 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
2 x PCI Express x1 slots
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
USB
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
https://www.gigabyte.com/Motherboard/Z690-UD-DDR4-rev-10#kf
Default
Tip de dispozitiv Материнская плата
Frecvența memoriei 5333
Marca Gigabyte
Factorul de formă ATX
Socket 1700
Tipul de memorie DDR4
Dimensiunea RAM up to 128Gb
Numărul de sloturi de memorie 4

Spune-ţi opinia

Notă: Codul HTML este citit ca şi text!
    Rău           Bun
Captcha

MB S1700 Gigabyte Z690 UD DDR4 1.0 ATX

  • Producător: GIGABYTE
  • Cod furnizor: 1706-00029737
  • Disponibilitate: În Stoc!
  • 4 841 MDL




Etichete: MB S1700 Gigabyte Z690 UD DDR4 1.0 ATX
